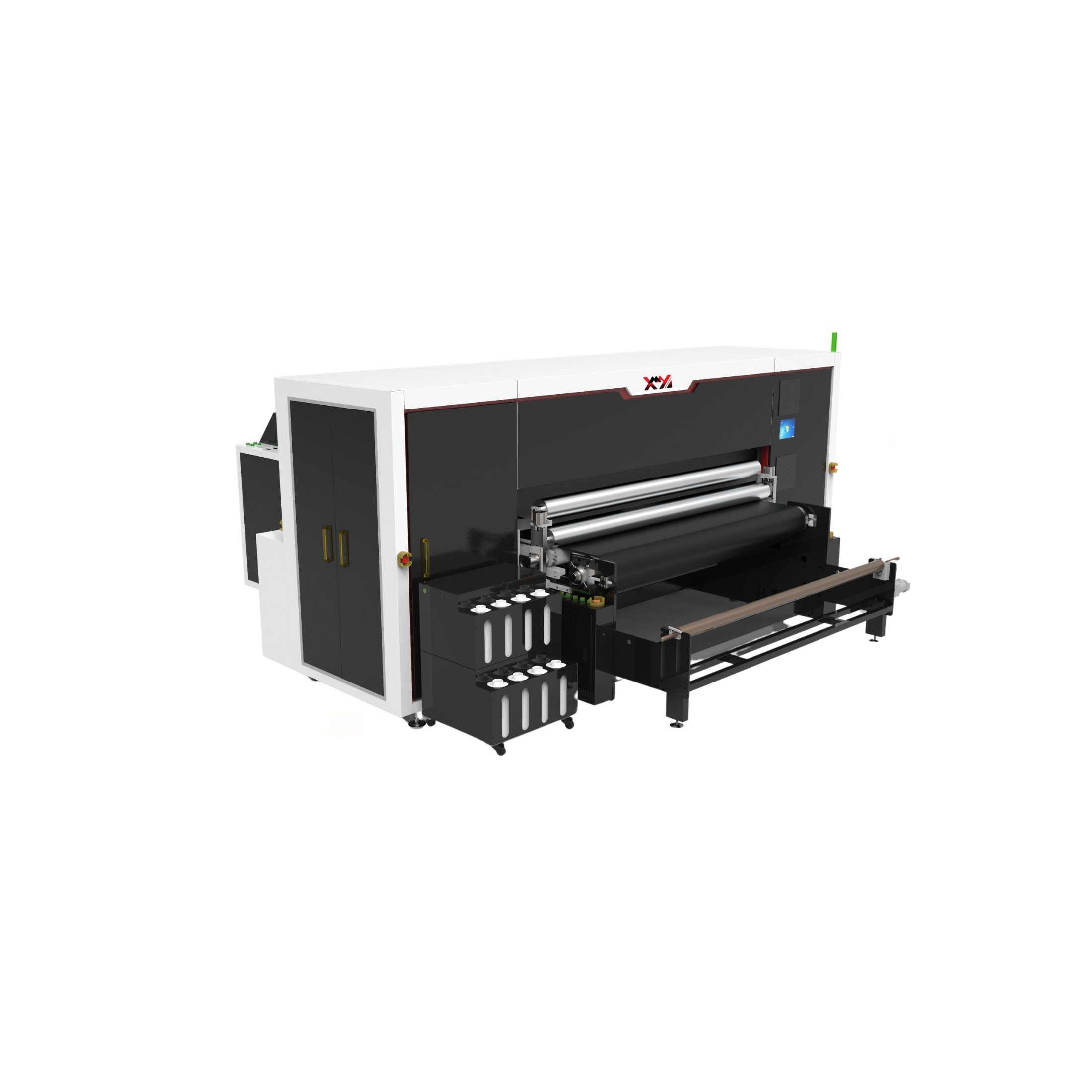

导带直喷机 Ricoh6
产品优势
• 理光G6高速工业级的打印喷头，更好的满足工业化生产需求；
• 采用磁悬浮直线电机，打印精度更高；
• 负压式墨路控制系统以及墨水脱气系统应用，大大提升喷墨的稳定性；
• 配备导带自动清洁系统，保证连续生产，提高生产效率；
• 主动收/放卷结构，确保面料稳定的伸展/收缩性。
机器参数
| Model | XR20-8 | XR20-16 | XR20-32 | |||
| Printer head | 8 pcs ricoh Gen 6 | 16 pcs ricoh Gen 6 | 32 pcs ricoh Gen 6 | |||
| Print thickness | 2-30mm range is adjustable | |||||
| Max. Print width | 2000mm/3200mm | |||||
| Max. Fabric width | 1950mm/3250mm | |||||
| Production Mode | 150m²/h(2pass) | 310m²/h(2pass) | 600m²/h(2pass) | |||
| Image type | JPEG/TIFF/BMP | |||||
| Ink color | Ten colors optional: C M Y K LC LM Grey Red Orange Blue | |||||
| Types of Ink | Reactive/Disperse/pigment/Acid ink | |||||
| RIP Software | Neostampa/Wasatch/Texprint | |||||
| Transfer medium | Continuous conveyor belt, automatic unwinding and rewinding | |||||
| Head cleaning | Auto head cleaning&auto scraping device | |||||
| Power | 15KW | 25KW | ||||
| Power supply | 380VAC ± 10%，三相五线 380vac plus or mius 10%, three phase five wire |
|||||
| Compressed air | Air flow 0.3m³/min, air pressure 0.8mpa | |||||
| Working environment | Temperature 18-28degrees, humidity 50%-70% | |||||
| Width | 2000MM | 3200MM | 2000MM | 3200MM | 2000MM | 3200MM |
| Overall dimensions | 4200(L)×2510(W)×2265(H)mm | 5500(L)×2510(W)×2265(H)mm | 4200(L)×2510(W)×2265(H)mm | 5500(L)×2510(W)×2265(H)mm | 4800(L)×4900(W)×2250(H)mm | 6100(L)×4900(W)×2250(H)mm |
| Weight | 3400KG | 4500KG | 4400KG | 5000KG | 7800KG | 9800KG |
